✅Applicable Industries
New energy battery testing, chemical reactors, multi-station extrusion and injection molding, coating production lines, semiconductor auxiliary cooling, electroplating and oxidation tank group cooling, water-cooling systems for complete automation equipment, and large-scale centralized cooling projects.
✅Customization Services
The number of flow channels, flow rate per channel, cooling capacity, inlet/outlet port specifications, and special corrosion-resistant water circuit materials can all be customized according to specific requirements.

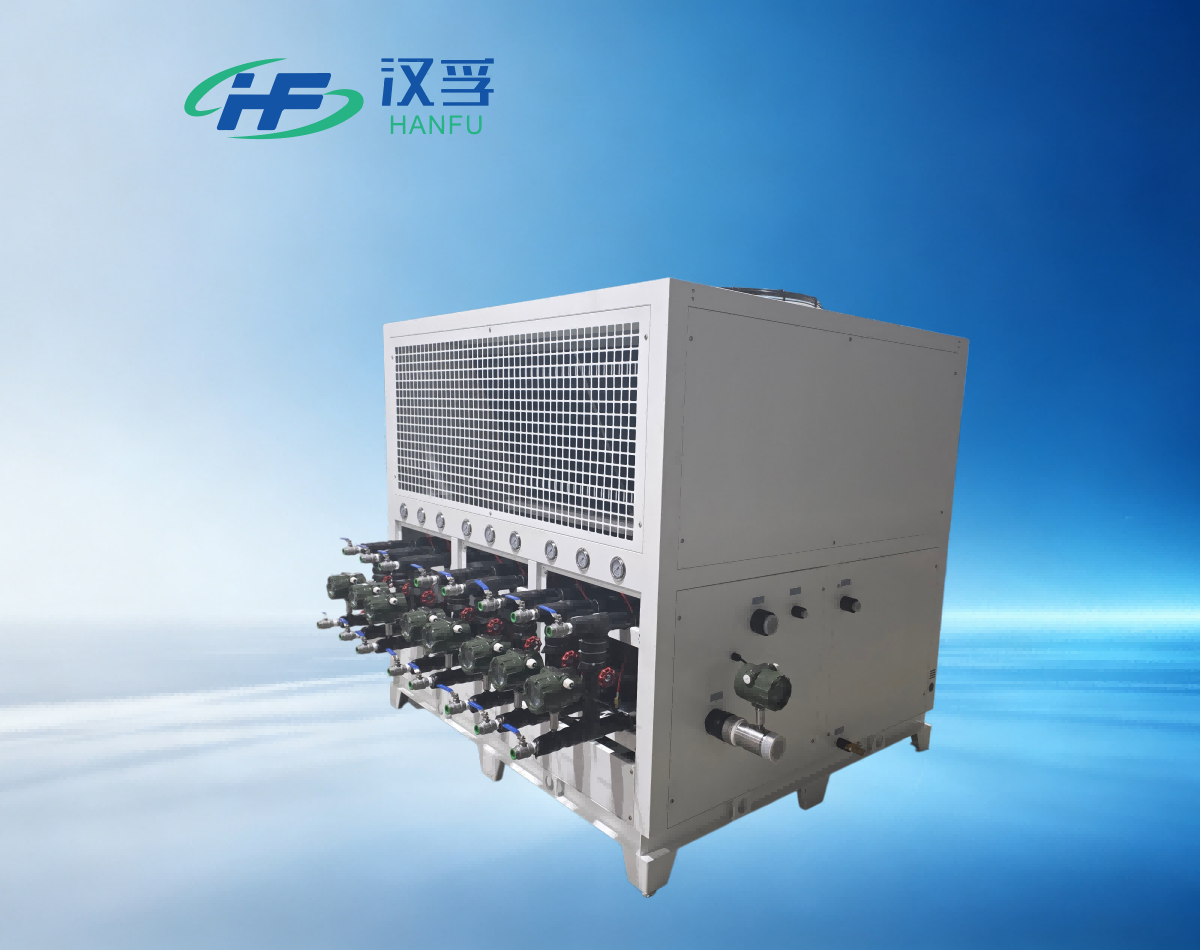

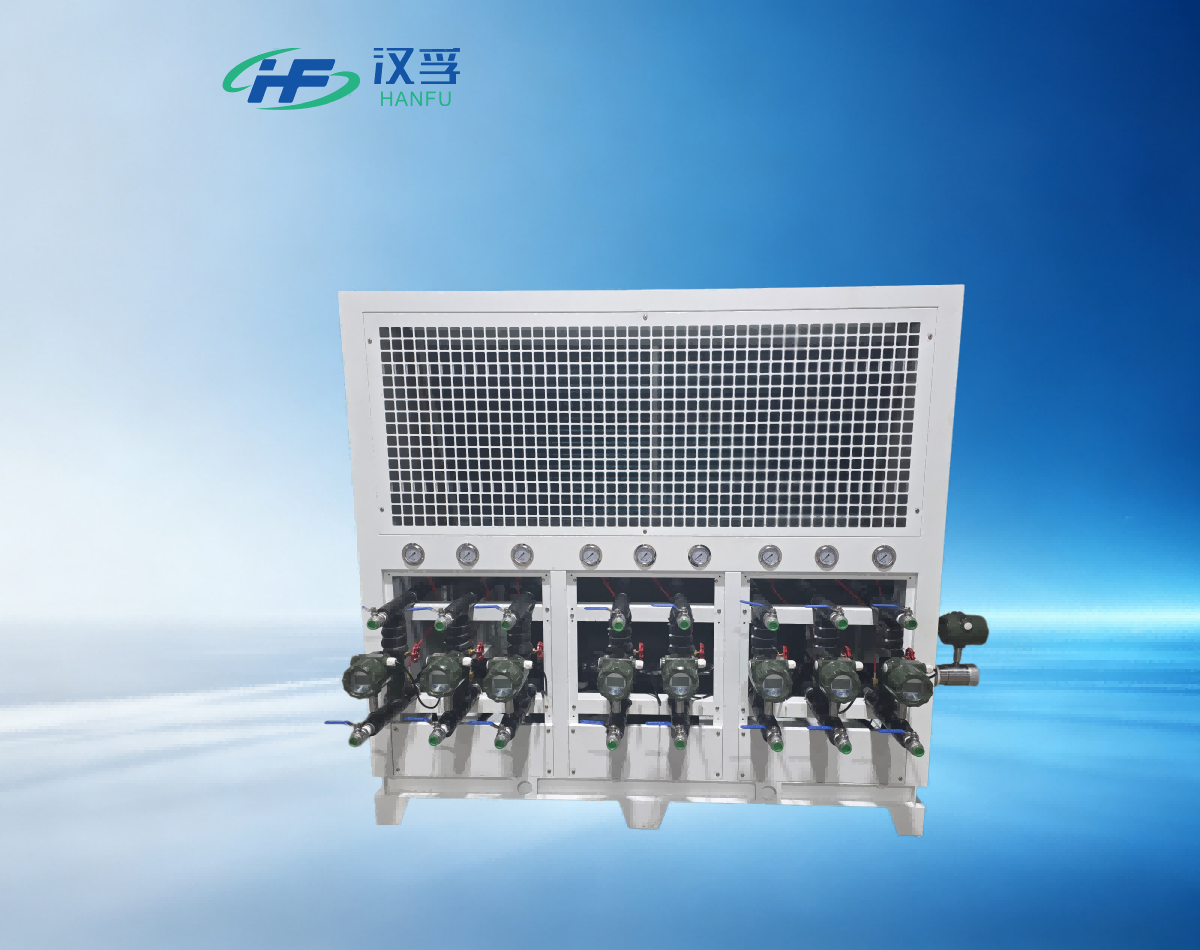

✅ Multi-Channel Flow Paths with Automatic Water Flow Control
An innovative multi-channel independent circulation design allows a single main unit to simultaneously supply multiple chilled-water circuits. The flow rate of each circuit can be set independently without mutual interference, effectively solving the challenges of simultaneous cooling for multiple production lines and multiple pieces of equipment, as well as differentiated heat dissipation for different load conditions.
✅ PLC Automatic Control

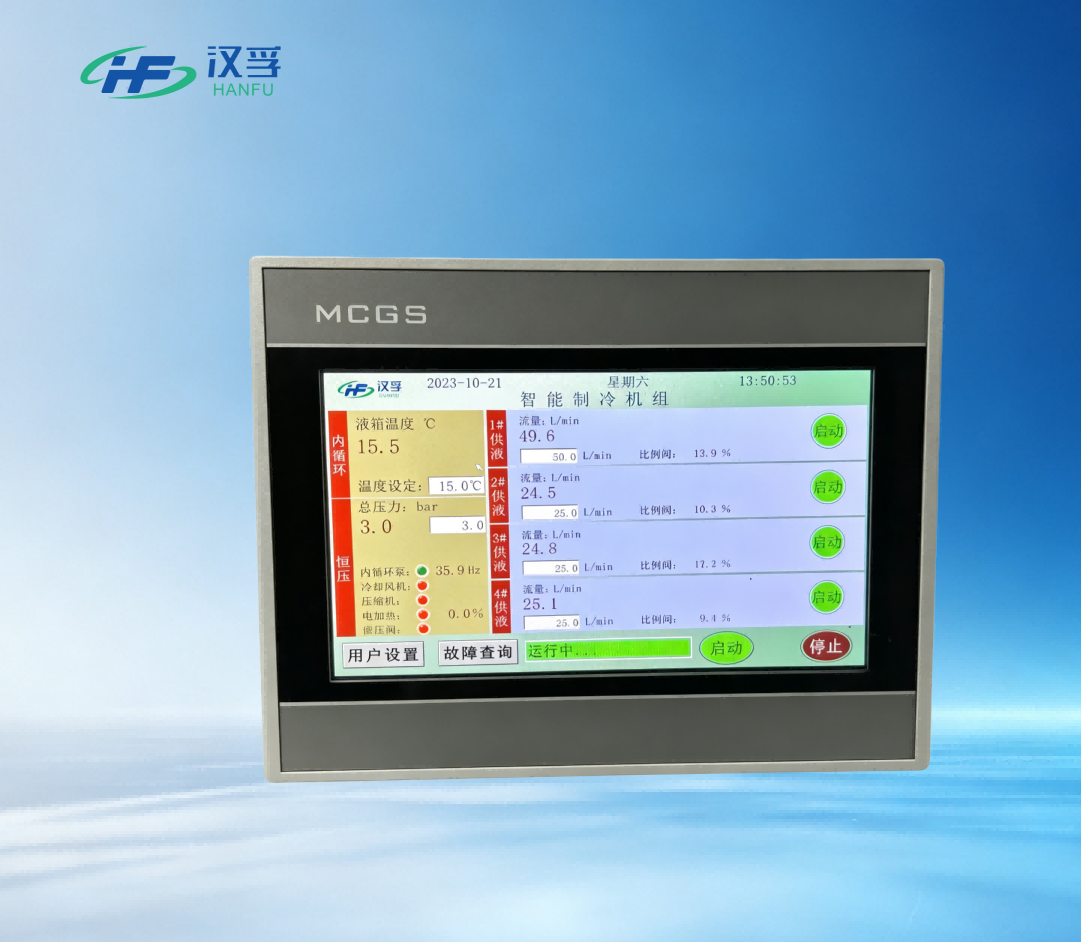

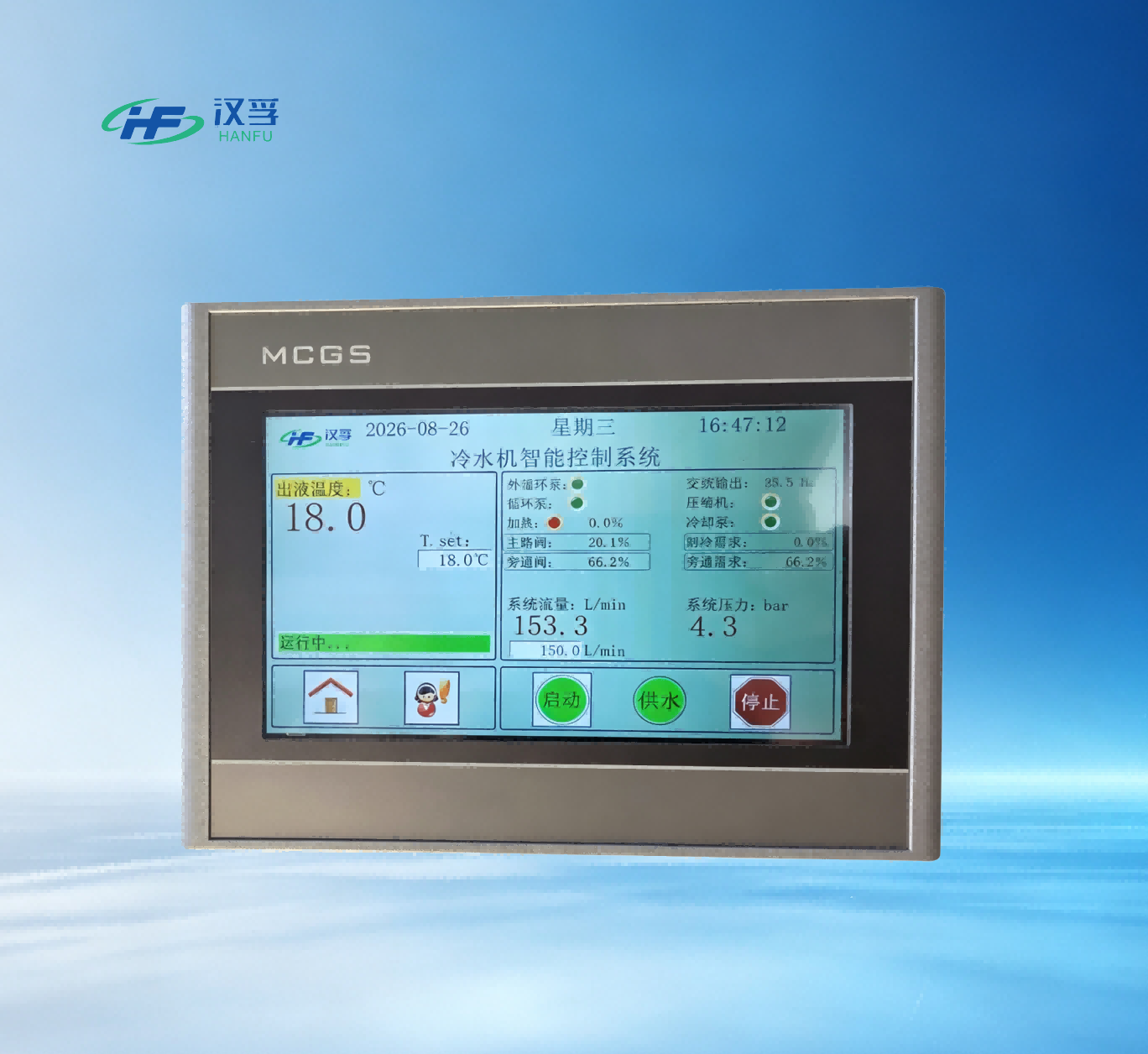

The PLC intelligent control system automatically collects and adjusts the water flow rate of each circuit for autonomous control, achieving water flow accuracy of ±1 L and eliminating unnecessary energy consumption. The large color touchscreen provides real-time visualization of temperature, pressure, and flow rate across multiple circuits. It supports RS485 remote communication, data export, and automatic fault diagnosis and alarm functions.
✅ Stable Operation Under Wide Operating Conditions
The water-cooled shell-and-tube heat exchanger offers high heat transfer efficiency and strong resistance to scaling. It can accommodate chilled-water temperatures ranging from -5℃ to 60℃, meeting the demanding operating conditions of industries such as chemicals, advanced materials, new energy, injection molding, and electroplating.
✅ Space Saving: One unit can replace multiple chillers, reducing equipment footprint and freeing up valuable factory space
✅ Cost Reduction: Centralized power supply from a single main unit reduces power distribution wiring and lowers procurement and maintenance labor costs
✅ High Precision: Independent temperature control for multiple water circuits, with temperature control accuracy of ±0.5℃, ensuring consistent processes across multiple production lines
✅ Easy Management: A centralized control panel provides a clear overview of all cooling points, making operation and maintenance simple and efficient
✅ High Safety: Multiple interlocking protection functions, including high/low pressure, anti-freezing, water shortage, and overload protection, ensure safe and reliable equipment operation
Multiple Protection Functions
