✅Custom dimensions available according to customer requirements.
✅Mainly applied for equipment cooling in locations with limited space, poor ventilation, inconvenient operation, laboratories, and other special applications.

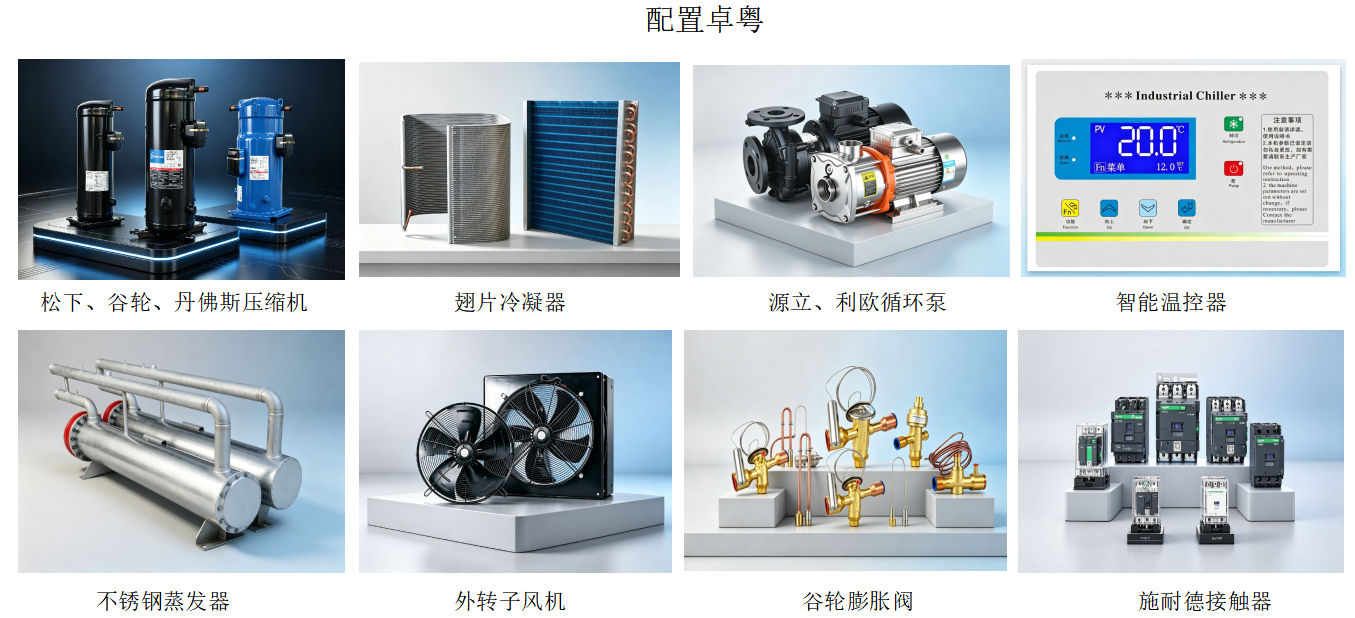

✅Selected Panasonic (Japan), Copeland (USA), and Danfoss (Denmark) flexible scroll compressors. Durable, reliable, and highly efficient.
✅Uses R134a/R410A/R407C low-GWP environmentally friendly refrigerants, ODP=0, ozone-friendly and compliant with environmental requirements.

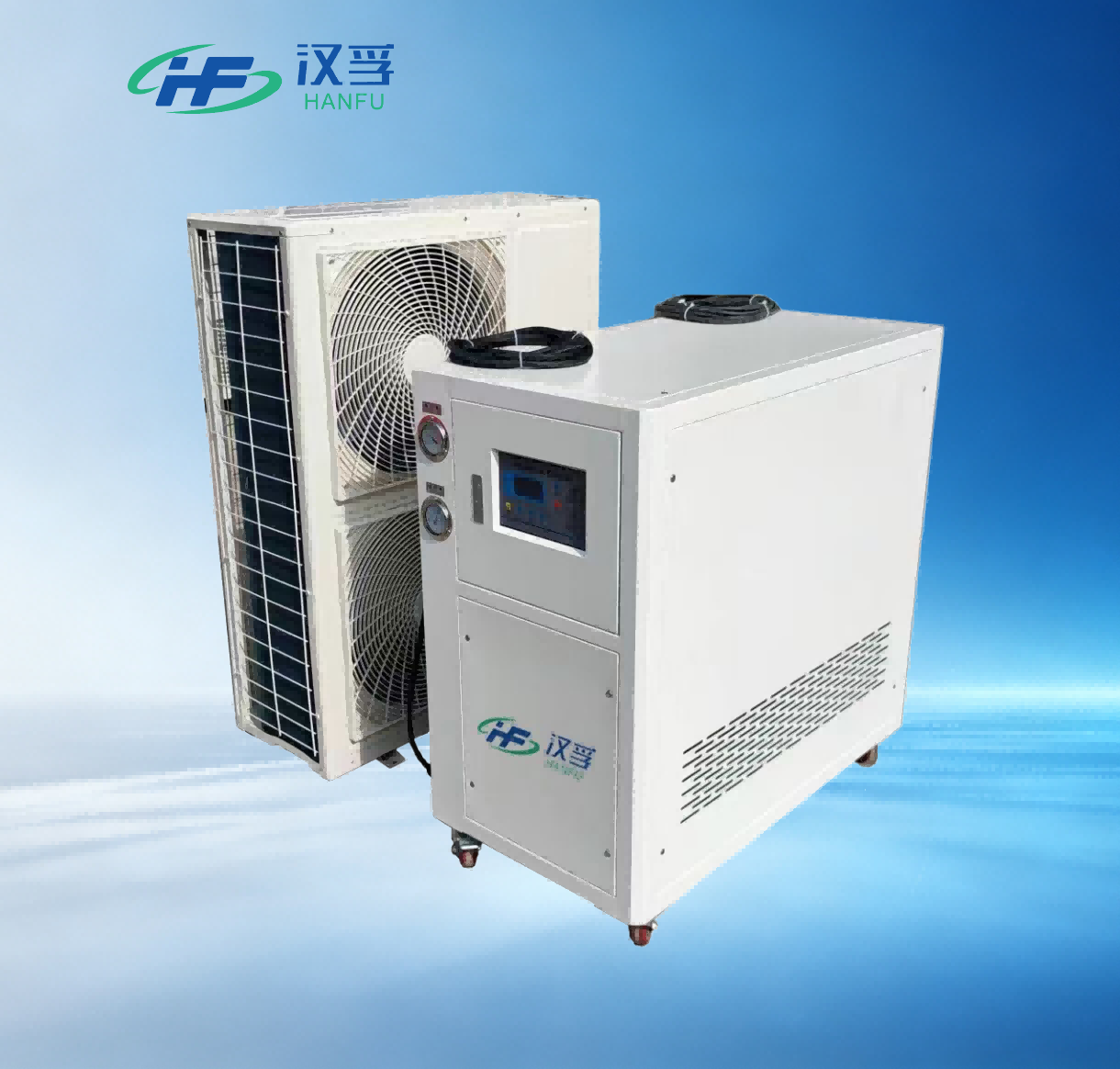

✅The air-cooled chiller unit requires no cooling tower. Built-in air-cooled condenser dissipates heat through air, eliminating the need for a cooling water system.
✅High-efficiency V-type fin air-cooled condenser with copper tubes and aluminum fins. Rain and sunlight resistant, ensuring stable operation in ambient temperatures from -15℃ to 43℃.
✅Complete protection system: high/low pressure protection, anti-freezing protection, water flow protection, overload protection, discharge overheating protection, phase sequence protection. Supports antifreeze operation with ethylene glycol/propylene glycol in low-temperature environments.
✅Supports Modbus-RS485, compatible with building BMS systems for remote monitoring and fault alarms.
